Home > Product Center

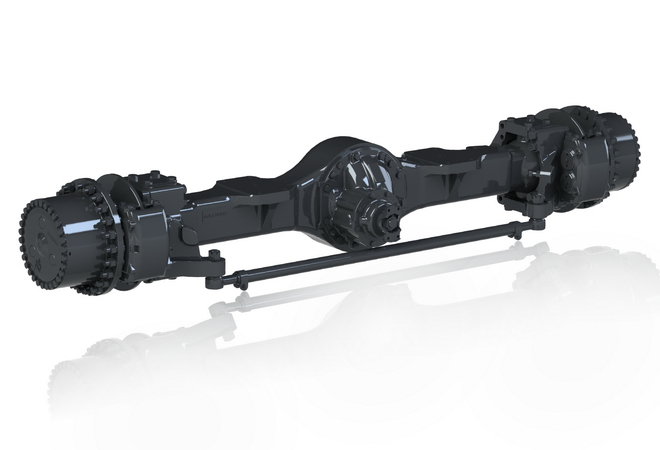

25 Tons engineering rear axle
Introduction:

PSC1764 feature (25 Tons)
? The converging oil seal greatly reduces the leak risk, also prolongs the service life of oil seal.
? High strength hypoid gear with better torque transfer ability than spiral bevel gear.
? Reinforced alloy steel casting housing, the axle rigidity superior to the stamping and welding housing at the same level.
? Large range of speed ratio, with hub reduction, meet customer different requirements.
? Carrier is installed with ring gear anti-thrust screw, which prevents the ring gear from getting deformed at high load.
? A variety of rim mounting distance, which meets the requirements of customers for more flexibility.
? Multiple sets of magnets attached to inside of housing, decreasing the lubricating oil pollution.
? Optional differential lock improves the power output distribution of the vehicle in the bad road conditions.
? The parking brake device at the carrier input end (option for customer).

The product is applicable to:Off-road crane, port unmanned carrier, etc.

Technical Parameters Other

輪邊速比:4.235,主減速比:2.93-6.14
單橋承載:時速=40kph時,最大承載25t;最大靜承載100t
最大轉向角26°
適用輪輞及輪胎:25.0X25"/29.5X25"
駐車制動器油壓=1450-2030PSI,制動力矩=4470N.m;行車制動器最大油壓=2300PSI,制動力矩=22777N.m
